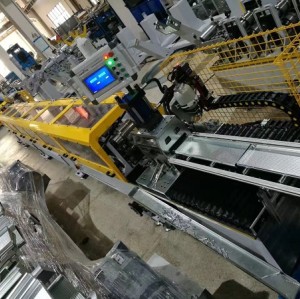

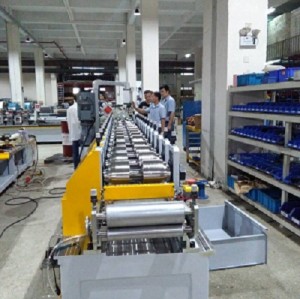

Rod Profile Roll Forming Machine

Group Shelf Racking Profile Roll Forming Machine
Min. Order 1 piece
Terms of Payment L/C, T/T
Update Time 2018-02-01
Description

Profile Thickness

0.8-1.5mm

Requirements

Dimensional tolerances: +/- 1mm, +/- 1º angle

Bow: 1.5mm

Camber: 1.5mm

Twist: 1.0º

Working Speed

10~15 meters/Min with punching

Forming Stations

10

Technical Process

Decoiler → Guided Feeding →  Roll Forming → Punching→ Cutting to Length (hydraulic cutting) → Collection Table

Main Motor

5.5KW (Brand: JIE made in China)

Chain

20A

Sprocket

Tooth top high frequency quenching

Bearing Pedestal

1) Nodular Cast Iron   2) Milling the Centre   3) Black Finish

Bearing

C & U

Spindle

1) High Grade 45# Carbon Wrought Steel

2) Diameter: 62mm

3) Thermal Refining HB220-250

Lining

1) Seamless Steel Tube       2) Single Surface Thickness >= 5mm

Rollers

1) Material:GCr15

2) Hardness Surface: HRC58℃-62℃

3) Chromate Treatment

Hydraulic Station Power

3.75KW, hoses to be fitted with JIC standard, brand : Aeroquip

Cutting

Blade Material: Cr12, with heat treatment

HR58℃-62℃    Hydraulic drive, non-stop fly shear cutting after forming

VFD

Delta

PLC

Delta

Encoder and sensor

Omron

Collection Table

Normally 2 meter

Terms & Conditions

1. Offer Validity: Be effect 30 days

2. Delivery terms: Within 120 business days after order confirmed by signature on sales contract.

3. Shipping port: FOB Shanghai
